Set Up Unit Sets

You set up unit sets to enable users switching between unit set displays or change the unit used on displays. A unit set can contain multiple unit types with preselected units of measure to be used on the screens. On the right-hand side of the screen, users can switch or update unit sets on the Unit Set pane.

Follow the steps below to set up unit sets and assign unit types to them.

Create Unit Sets

1. Choose Configuration ‣ Units of Measure from the menu.

2. On the Unit Set tab, click Add on the toolbar.

3. In the Unit Type Configuration dialog, enter data as follows:

   Field	Description
   Name	Enter a name that uniquely identifies the unit set.
   Description	Enter any additional information about the unit set as required.
   Copy From	Select a unit set from which you want to copy unit type entries.

4. Save your entries.

Result

A new row for the unit set entry gets added to the grid. The unit types from the unit set that you selected are automatically assigned to the new unit set. To add additional unit types, follow the steps described in Add Unit Types to Unit Set. You can edit or delete the new unit set entry using the corresponding icon in the Action column.

Add Unit Types to Unit Set

Once you have created a unit set, you can add unit types to it in the following two ways:

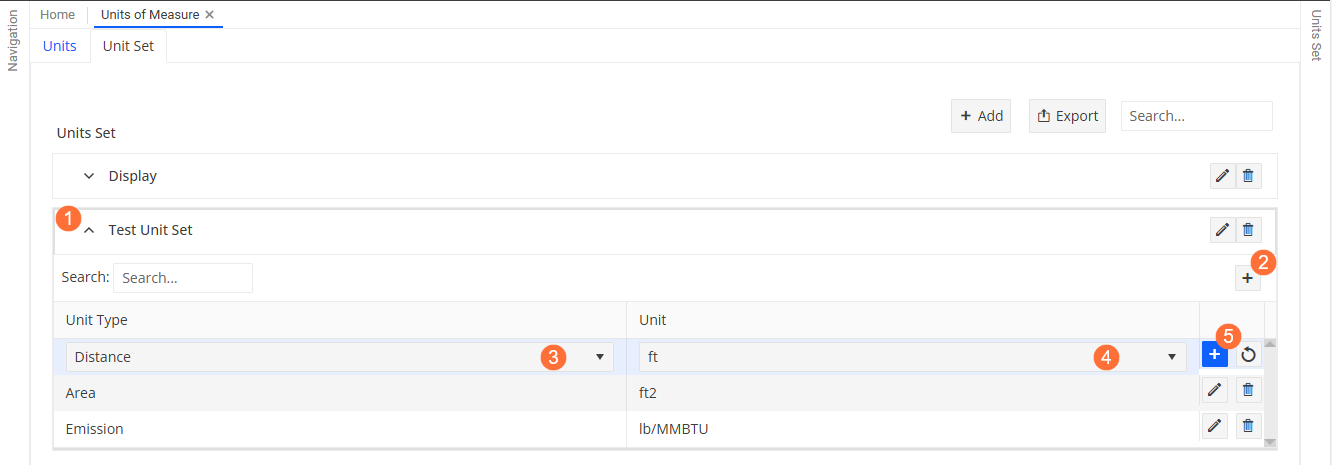

Add Unit Type from Configuration

1. Choose Configuration ‣ Units of Measure from the menu.

2. On the Unit Set tab, expand the row of the relevant unit set by clicking the icon in the first column of the row.

3. Under the expanded unit set, click at the top of the grid.

4. In the new row that appears, select the unit type that you want to add as well as the unit that you want to use for that unit type. The available values are preconfigured in your unit type and unit conversion configurations (see Set Up Unit Types).

5. Click to save your new entry. If you want to cancel creating the entry, click .



Result

A new row for the unit type entry gets added to the grid. You can edit or delete the unit type entry using the corresponding icon in the Action column.

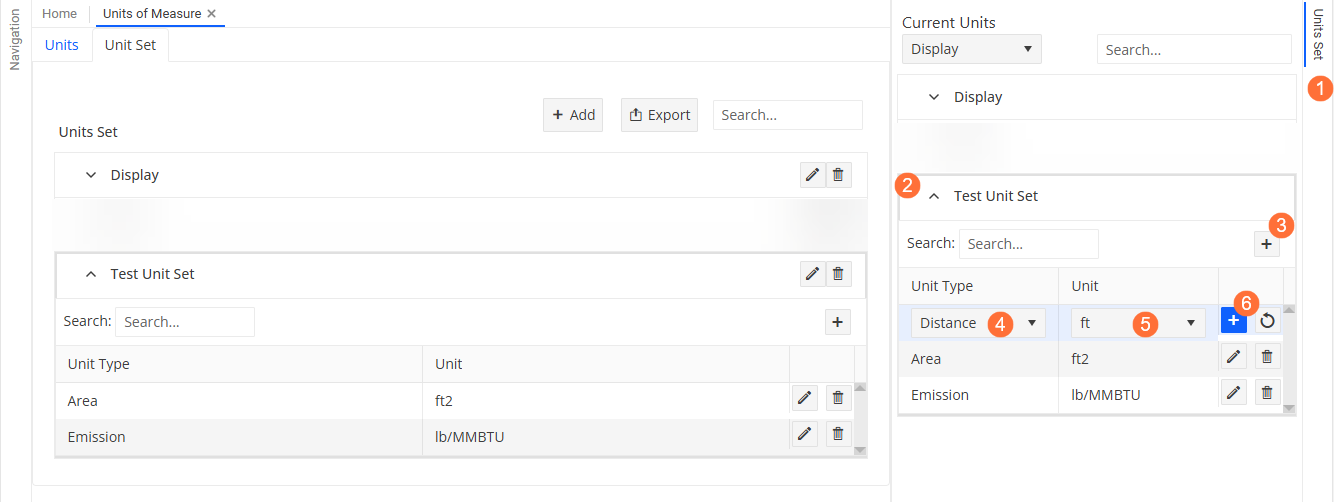

Add Unit Type from Unit Set Pane

1. Click the Unit Set pane on the right-side of the screen to make it visible.

2. Expand the row of the relevant unit set by clicking the icon in the first column of the row.

3. Under the expanded unit set, click at the top of the grid.

4. In the new row that appears, select the unit type that you want to add as well as the unit that you want to use for that unit type. The available values are preconfigured in your unit type and unit conversion configurations (see Set Up Unit Types).

5. Click to save your new entry. If you want to cancel creating the entry, click .



Result

A new row for the unit type entry gets added to the grid. You can edit or delete the unit type entry using the corresponding icon in the Action column.
