Set Up Unit Types

You set up unit types to group engineering units based on a specific kind of measurement. For each unit type, you can then assign unit conversions to enable converting a measurement from one unit to another within the same unit type.

For example, if you have a unit type called “Temperature” with the base unit Fahrenheit (F), you can add a unit conversion that converts Fahrenheit to Celsius (C), and another unit conversion that converts Fahrenheit to Kelvin (K).

Follow the steps below to set up unit types and assign unit conversions to them.

Define Unit Types

  1. Choose Configuration ‣ Units of Measure from the menu.

  2. On the Units tab, select the Unit Type radio button on the top of the tab page.

  3. Click add Add on the toolbar.

  4. In the Unit Type Configuration dialog, enter data as follows:

    Field

    Description

    Name

    Enter a name that uniquely identifies the unit type.

    Internal Default Unit Name

    Specify the name of the base unit that you want to use for the unit type. This will be the primary unit of measurement within a unit type that serves as the reference point for all conversions to other units within that type.

    Description

    Enter any additional information about the unit type as required.

  5. Click Submit to save your entries.

Result

A new row for the unit type entry gets added to the grid. A default unit conversion is automatically assigned to the unit type with Gain value 1 and Offset value 0. To add additional unit conversions, follow the steps described in Add Unit Conversions. You can edit or delete the new unit type entry using the corresponding icon in the Action column.

Add Unit Conversions

Once you have created a unit type, you can add unit conversions to it as described below:

  1. Choose Configuration ‣ Units of Measure from the menu.

  2. On the Units tab, start adding a unit conversion in either of the following ways:

    Option 1

    1. Select the Unit Type radio button on the top of the tab page.

    2. Expand the row of the relevant unit type by clicking the add icon in the first column of the row.

    3. Under the expanded row, click add at the top of the Units Conversion table.

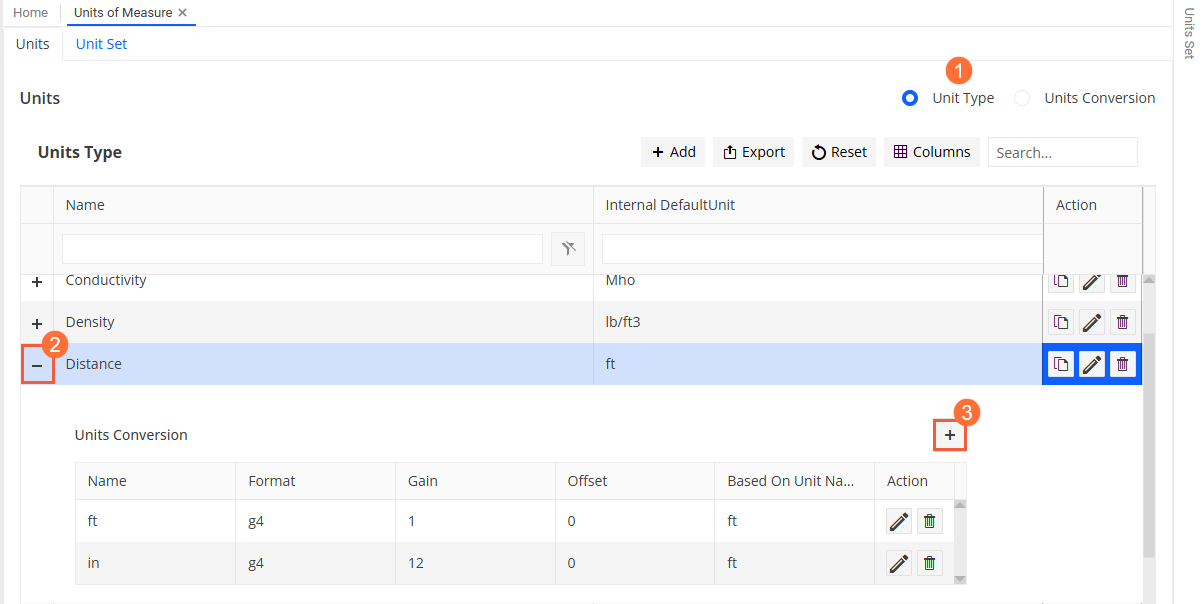

    ../_images/conf.uom.unitconv.opt1.png

    Option 2

    1. Select the Unit Conversion radio button on the top of the tab page.

    2. Click add Add on the toolbar.

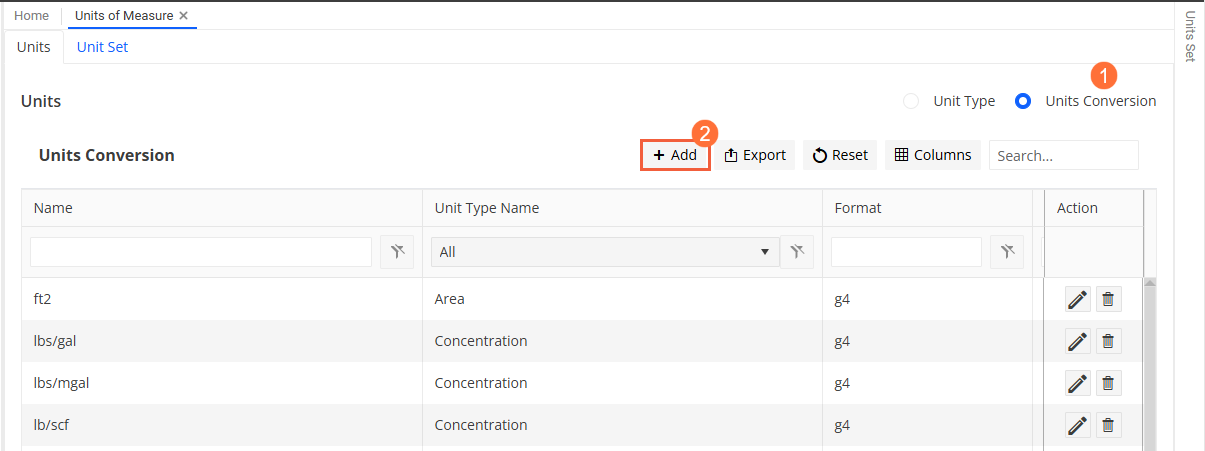

    ../_images/conf.uom.unitconv.opt2.png

  3. In the Unit Conversion Configuration dialog, enter data as follows:

    Field

    Description

    Unit Type Name

    Enter the name of the unit type to which you want to assign the unit conversion. This is only necessary if you use Option 2 for creating the unit conversion.

    Name

    Specify the target unit for the conversion. This wil be the unit to which the conversion will be performed. For example, if the unit type is area, this can be “m2”.

    Base Unit Name

    Select the primary unit of measurement within the Unit Type that serves as the reference point for conversions. For example, if the unit type is area, this can be “ft2”. The available options depend on the units predefined for the selected unit type.

    Default DotNet Format

    Set the default formatting style applied to the unit when using dotnet format. This ensures consistency in how the unit is displayed and processed in .NET applications.

    Gain

    Enter the multiplication factor used in unit conversion. It determines how much the base unit value should be multiplied to convert to another unit.

    Offset

    Specify the addition or subtraction factor used in unit conversion. It adjusts the base unit value by adding or subtracting a specific amount to convert to another unit.

    Example

    If the unit type is Temperature, the base unit is Fahrenheit and the target unit is Celcius, you configure the unit conversion as follows:

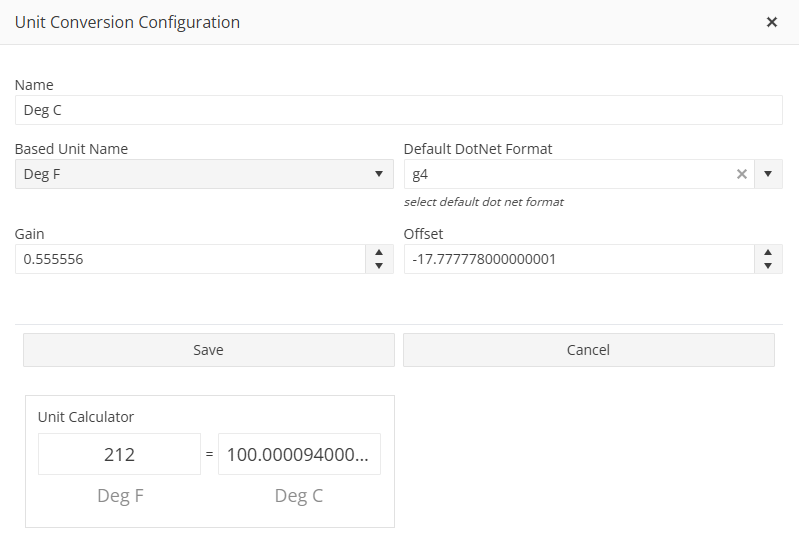

    ../_images/conf.uom.unitconv.temp.png

    In this case, if the tag has a value of 212 F, the unit conversion will be performed as follows:

    TempC = (TempF * Gain) + Offset
TempC = (212 * 0.555556) + -17.777778 = 100 Deg C

    The reverse conversion would be:

    TempF = (TempC - Offset) / Gain
TempF = (100 - -17.777778) / 0.555556) = 212

    Tip

    You can test the unit conversion at the bottom of the dialog in the Unit Calculator.

  4. Save your entries.

Result

A new row for the unit conversion entry gets added to the grids, both in the Unit Conversion table under the expanded Unit Type, and in the Units Conversion grid. You can edit or delete the new unit conversion entry using the corresponding icon in the Action column.

Example Unit Conversion

The example below shows setting up conversions for an Energy Rate unit type, illustrating how to convert between a base rate and a millionths multiplier.

To set this unit conversion up, you follow the steps below:

  1. You create a unit type for the energy rate, with the default base unit BTU/hr.

    ../_images/conf.uom.unitconv.energyrate1.png

  2. You add a unit conversion for the base unit (BTU/hr) as well as a unit conversion for the target unit MMBTU/hr.

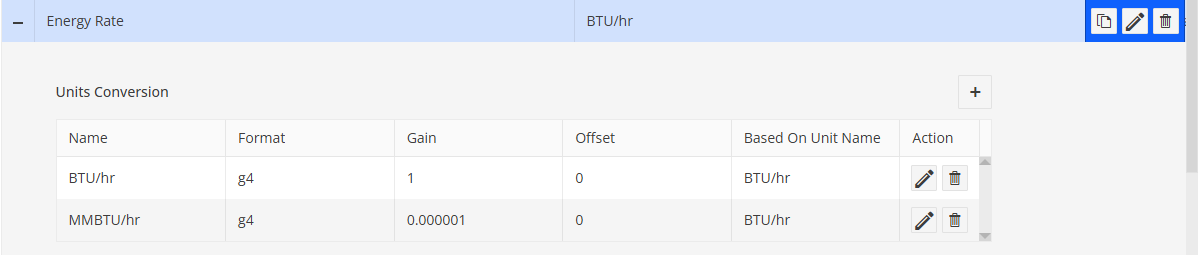

    ../_images/conf.uom.unitconv.energyrate2.png

In this case, unit conversions are performed as follows:

  • Conversion from BTU/hr to MMBTU/hr:

    MMBTU/hr=(BTU/hr * Gain) + Offset

MMBTU/hr=(1000000 * 0.000001) + 0 = 1 MMBTU/hr

  • Reverse conversion from MMBTU/hr to BTU/hr:

    BTU/hr = (MMBTU/hr - Offset) / Gain

BTU/hr = (1 - 0) / 0.000001 = 1000000 BTU/hr
