Review Flowsheets

Flowsheets allow you to design and manage calculations within Wood InsightsPlatform (WIP). For detailed information about this functionality, see Flowsheets.

Prerequisites

To be able to review flowsheets, they must be set up and configured as described in Set Up Flowsheets.

Review Flowsheets

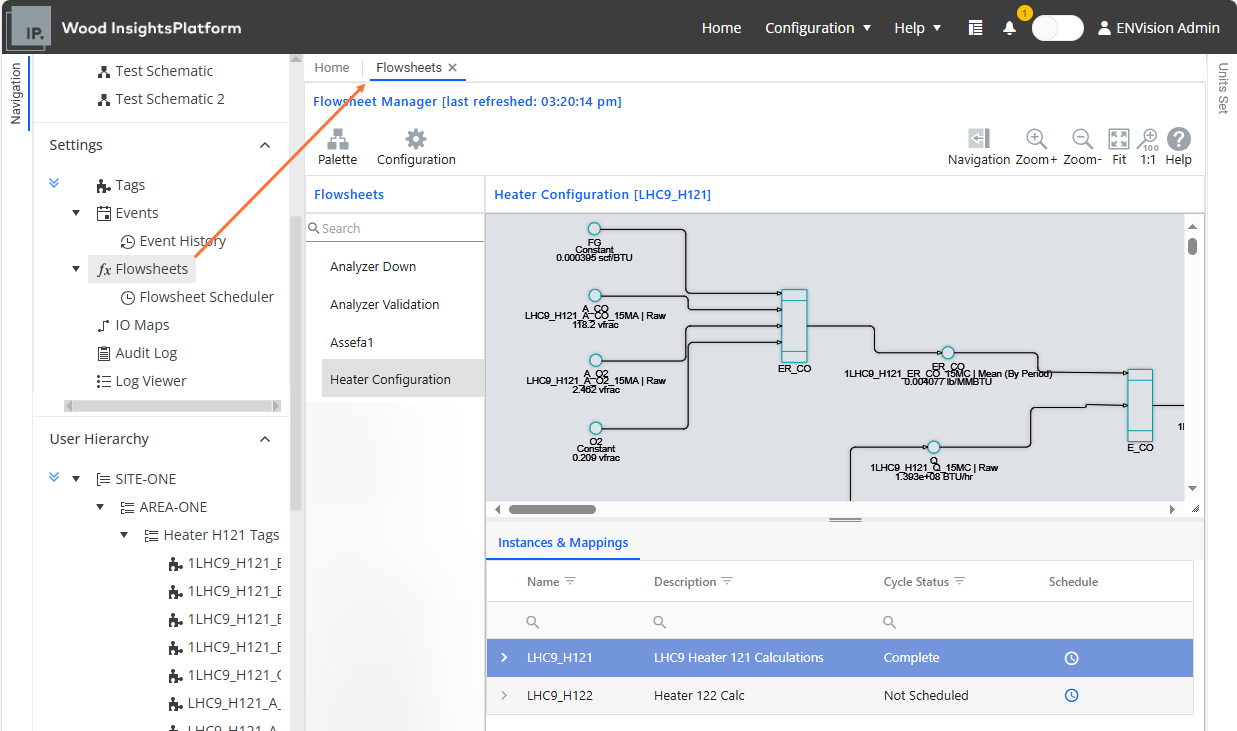

You can review flowsheets with the current mapped IO values in the Viewer Mode of the Flowsheet Manager, which you can access under Settings ‣ Flowsheets from the Navigation sidebar.

../_images/dr.flowsheet.png

In Viewer Mode, you can:

  • View the structure and elements of a selected flowsheet.

  • Inspect current values of input and output IO elements.

  • Monitor real-time updates based on the configured Flowsheet Display Refresh Interval.

  • Review flowsheet instances and their associated mappings.

For more information about the Flowsheet Manager, see Flowsheet Manager. Any changes to the flowsheet can be made in the Configuration Mode of the Flowsheet Manager (see Set Up Flowsheets).

Flowsheet Scheduler

Under Settings ‣ Flowsheets ‣ Flowsheet Scheduler, you can also access the Flowsheet Scheduler. For detailed information about this functionality, see Configure Flowsheet Scheduler.
